Fully automatic autoclave retort for sterlization of vaccum packages

Autoclave sterilizer/sterilizing autoclave/sterilizing retort

Introductions:

  1. Structure:

Include body, cover, starting system, locking system, safe interlocking device, track, baskets, steam pipe, as well as other pipes, cover sealing by inflatable silicone rings, reliable sealing and long life

  1. Features:

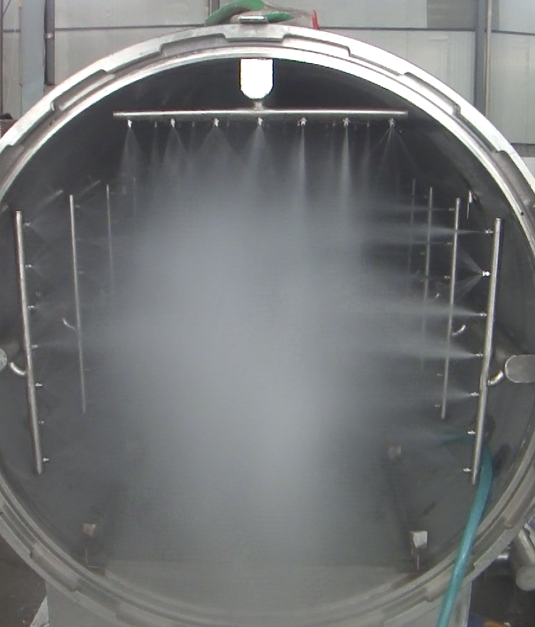

Equip with pressure gage and safe valve, amazing appearance, easy operating, stable function, spraying type, indirect warming and cooling, water recycling used, automatic control time, temperature and pressure, electrical temperature offset correction, made of stainless steel 304 material.

Technical parameters of retort cooker:

ModelDiameterLengthMaterialVolumePowerPressureTemperature℃
1000*24001000mm2400mmSUS3041.88455kw0.3Mpa147

ThicknessDimensionWeightTraysTray sizeTrolleyHeating tank
4mm4*6*1.6*2.5m1300kg3pcs800*650*120mm3pcs700*1500
