Oat hulling machine

Function and Features of oat huller

TY1000 It is designed to de-hull, remove shells, separate and re-separate for oats. The compact hullers are controlled by frequency converter, which can easily adjust the speed of huller so as to control the capacity and the percentage of broken kernels.

The un-hulled seeds return back to de-huller for next round hulling automatically. The machine features of easy operation and maintenance.


Component of oat de-huller

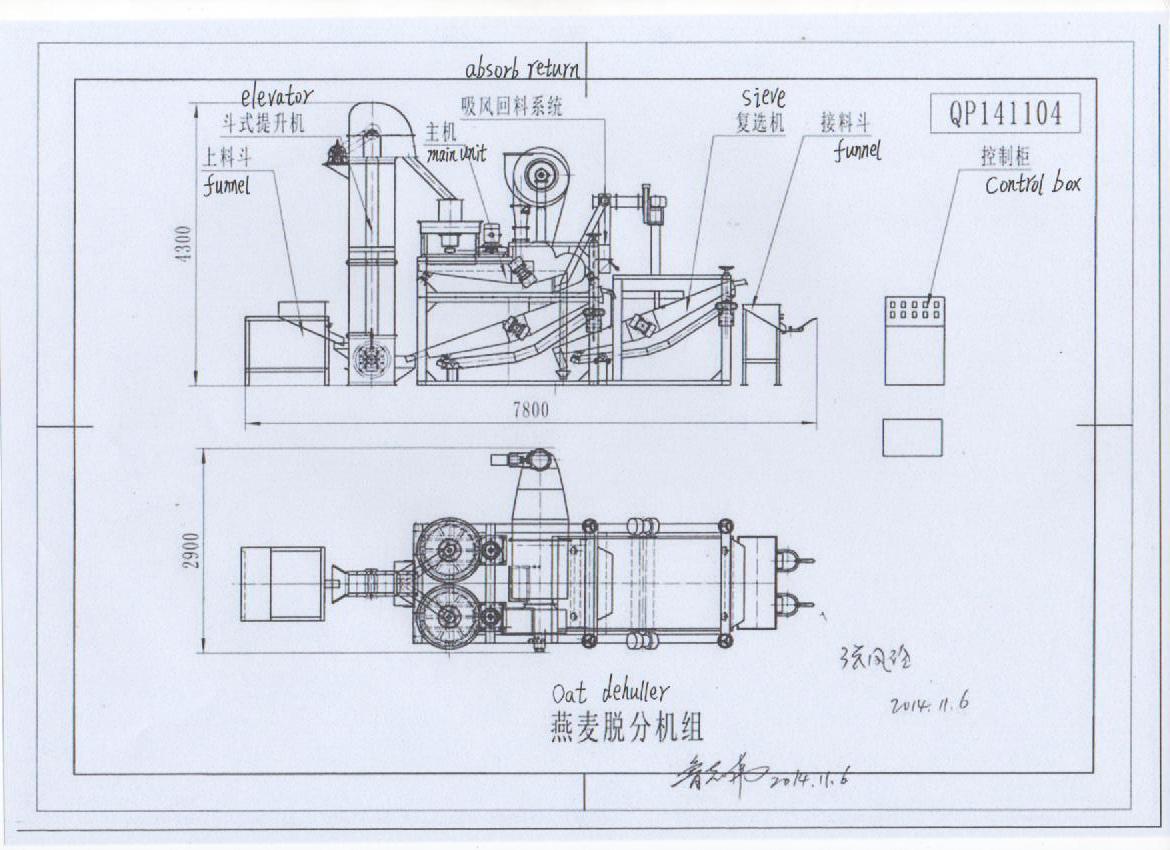

The machine consists of: Input hopper, elevator, main de-hulling part, separator, un-hulled oats cycling system, electric control panel.



Un-hulled seeds

Feeding → elevating → hulling → separating out shells from seeds and kernels      separating seeds from

Un-hulled seeds


kernels  → oat kernels


Technical Parameters of oat de-husker

Power: 8.13Kw(380V)

Processing capacity:0.8-1.0t/hour

% of the whole kernels: 95% min. (Broken kernel is that less than 1/2 of whole kernel)

% of seeds in the finished product: 2.4% max.

% of seeds and kernels in the shells: 0.3% max.

Occupied area: 8m × 3m

Height: 3m

Weight: 3t

Operator: 2 persons
