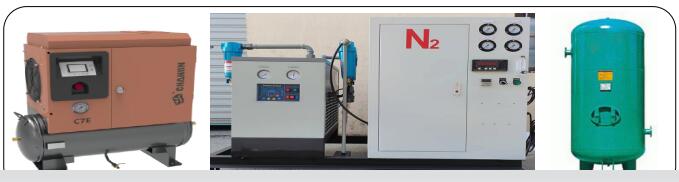

Nitrogen making machine/nitrogen machine/nitrogen gas setup/nitrogen device/nitrogen generator/nitrogen line

compressor

model:C7E-380V/5.5kw

volume: 0.7Nm3/min

pressure: 0.8Mpa

power: 5.5KW



air dryer(≤80℃)

model:LY-D10AC

capacity: 1.75Nm³/min

Outlet pressure dew point:1.7℃-8℃

vol:380V

power:0.75KW



nitrogen generator

model:HCFD99.5-3

Flow volume: ≥3Nm3/h

purity:≥99.5%

pressure:≥0.1-0.6Mpa

Dew point:≤-40℃

power:0.1 kw   temperature:≤ 40℃



storage tank

volume:0.3m³

pressure:0.8 Mpa

temperature:normal

height:1600mm

diameter:550mm

weight:  95Kg
