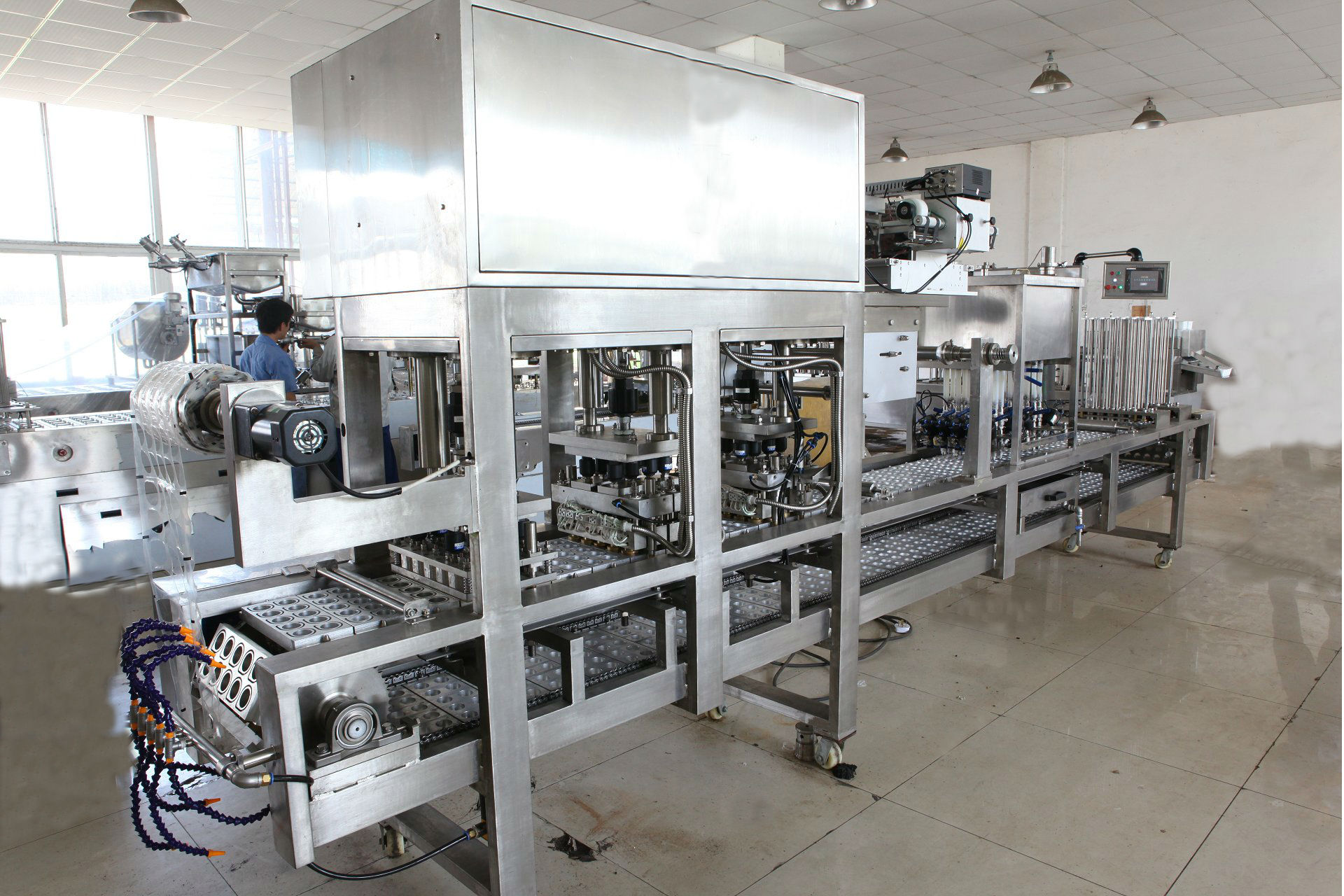

Plastic cup filling and sealing machine:

I: Features of jelly cup filling machine

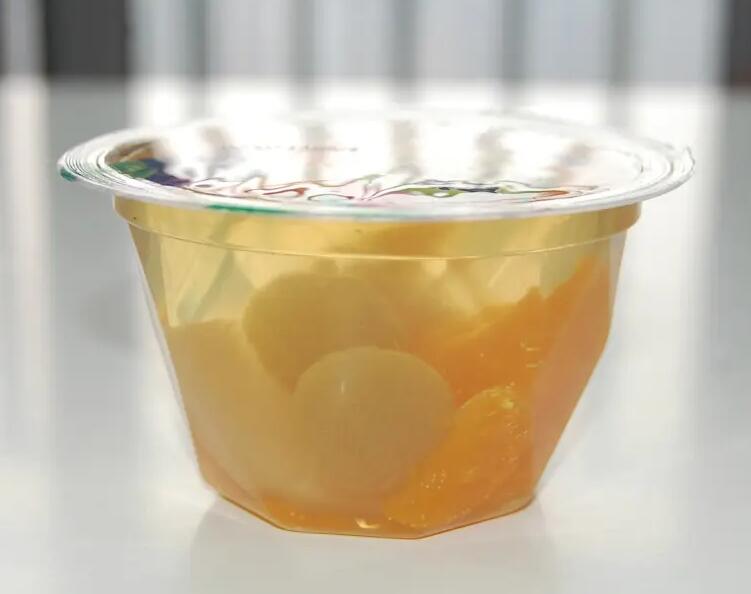

  1. Steps： feeding cups–filling chunks–filling juice–sealing–conveying final product
  2. Full stainless steel 304 food grade
  3. Aluminum plate part: module aluminum plate four hole aluminum alloy acidproof aluminum mold
  4. Transmission system: motor, reducer, CAM divider, template, etc.  Intermittent transmission device, pneumatic control element, intelligent digital temperature control system.  Precision CAM divider step clearance operation, high performance reducer;  Smooth transmission, low impact force, accurate position.
  5. Drop cup system: adopt pneumatic mechanical control cup fall into aluminum plate.

Sealing system: copper perm

  1. Sealing system: adopt constant temperature (intelligent temperature control single control) hot pressing sealing, sealing pressure is adjustable.
  2. Cup out system: Drop the cup out of the cup
  3. Packaging material can be PP, PE, PET.etc, available for various shapes of box or cups filling and sealing



II: Specification of fruit jam packing machine：

Type: automatic

Stype: 8 hole（double row）

Voltage：3phase 380V/50HZ （or customized as request）

Power：5.5KW

Temperature：0-400℃ （adjustable）

Air：0.8-1.0mpa

Capacity：≥5000-6000 cups/hour

Speed：4-5 seconds

Weight：1000kg

Dimensions：3500*900*1700mm



Video page: https://www.youtube.com/watch?v=kmnzkJ2KYfY
