Category: Fruit and Vegetable Processing Machine

Features of Kingston Banana Peeling machine

▼ This banana peeler is made of high-carbon chromium stainless steel with high strength and hardness, ensuring food production hygiene. And its blade is sharp and not easy to deform.
▼ Ripe banana peeling machine uses a mechnical hand to tear off banana skin, with good peeling quality, fresh soft surface, product thickness and uniform. And it brings no damage for fibrous structure.
▼ Considering the diversity of customers’ raw materials, we can provide banana peeler machine with unique customized services, like customizing the height and diameter of the inlet for customers.
▼ The mechanical transmission of high power brings long lifespan for the machine, and with low noise when running well.
▼ Plantain peeler machine supports continuous production, and its discharge port can be linked to subsequent processing equipment, which is convenient, practical and efficient.

Tamarind pulp extraction machine/extracting the pandanus pulp

Palm dates pulping machine/dates deseeder/dates deseeding/dates pulp machine:

Availability: dates, palm dates, tamarind, plum, prune, etc

1、peel,core, seeds, pulp automatic separating

2、can work alone and connect in full line

3、made of stainless steel

Principle of Tamarind pulping machine:

motor running through belt,make the rotor high speed rotating,fruits enter machine,vane push forward to pulping stic,then crushed,as centrifugal force,pulp go through sieve holes and coming out from outlet,core and peel dischared to another outlet,finally separated puree pure and clean,first removing the core,then removing peel and get final pulp

Notes:

1、install flat,fasten the ground bolts

2、fasten each bolt,check if loosen,clean inside and outside, keep clean

3、connect power,confirm the rotate direction correct

4、trial running 5 minutes, confirm ok, then normal production

5、feeding input gradually,no force,check quality after stop,regulate angel and sieve gap well

6、when stop, power off directly is ok,when rotor not stop running, don’t open the cover

7、when each batch production over,clean the sieve,open the front cover, take off the bolt,take apart the rotor and sieve, cleaning by water and brush is ok

8、must check if over heating occassionaly

9、check the rotating belt is old or broken, change new one on time

10、check the belt if too fasten or too loose,can turn around by hand, always 90o is best,regulate the bolt to adjust

11、bearing normal temperature below 75℃,lubrucating occassionally,prolong the life of bearing

Specificaion of Tamarind deseeding machine:

Size: 900*450*1100㎜
Vol：380v/220v/120V/50hz
Power：3KW
Capacity: 500kg/hr
Weight：95kg

Video clip: https://www.youtube.com/shorts/FAupW35Y8uY

Features and characteristics of sugarbeet peeler/Multi fruit peeler

patent protection, 304 stainless steel, famous Omron brand PLC device and components

automatic adaption of fruits sizes, stable operation, peeling thickness adjustable as per requirements

available for beet apple, pear, peach, kiwi, lemon, persimmon, orange, citrus, avocado, etc

accessory of 10 blades

air consumption 0.4CBM/minute

Specifications of beetroot peeling machine/citrus peeling machine/apple peeler and cutter

Capacity：1200pcs/hour

Peeling thickness：1—3mm/adjustable

Fruit diameter：40-100mm

Fruit height：40-120mm

Power: 0.6kW（220V）

Material: SS 304

Weight：340kg

Dimensions：1500×800×1800mm

Nitrogen making machine/nitrogen machine/nitrogen gas setup/high purity nitrogen device/nitrogen generator/nitrogen line

compressor

model:C7E-380V/5.5kw

volume： 0.7Nm³/min

pressure： 0.8Mpa

power： 5.5KW

air dryer（≤80℃）

model:LY-D10AC

capacity: 1.75Nm³/min

Outlet pressure dew point:1.7℃-8℃

vol:380V

power:0.75KW

nitrogen generator

model：HCFD99.5-3

Flow volume: ≥3Nm3/h

purity：≥99.5%

pressure：≥0.1-0.6Mpa

Dew point：≤-40℃

power：0.1 kw   temperature：≤ 40℃

storage tank

volume：0.3m³

pressure：0.8 Mpa

temperature：normal

height：1600mm

diameter：550mm

weight：  95Kg

For the production of top quality mango puree and mango pulp, Choose Kingston Mango Juicing Machine

Introduction on Kingston Mango Pulp Processing Machine

It is specially designed for mango processors who are in great demands on large capacity mango juice production. The mango juice processing plant is with innovative design and mainly consisted of elevator and high efficiency mango pulp making equipment. Automatic, Time-saving, and Cost-effective mango puree making machine

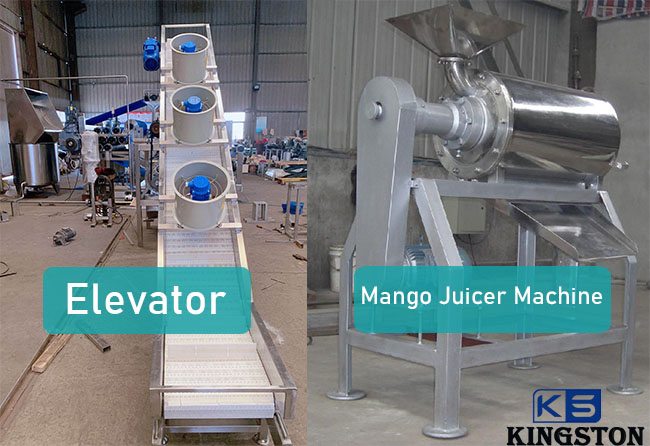

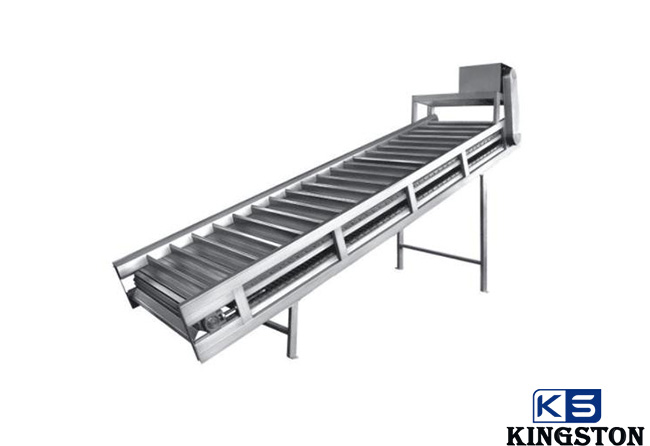

Elevator

It consists of motor, frame, roller, chain wheel, chain, and buckwet board. Available for horizontal conveying and hoisting conveying,lean angel not above 45°

—Notes when using Kingston mango elevating machine:
1.fasten each bolts
2.keep stable and no vibrating, keep clean
3.lubrication well occasionally
4.trial running 20 minutes, power off, check again, then normal running
5.keep clean after each batch process

—Parameters of mango peeler and juicer:
Net width: 400mm
Hoisting angle ≤ 45°
Loading capacity: 15kg/m
Speed: max 20m/min (adjustable)
Power: 0.75kw

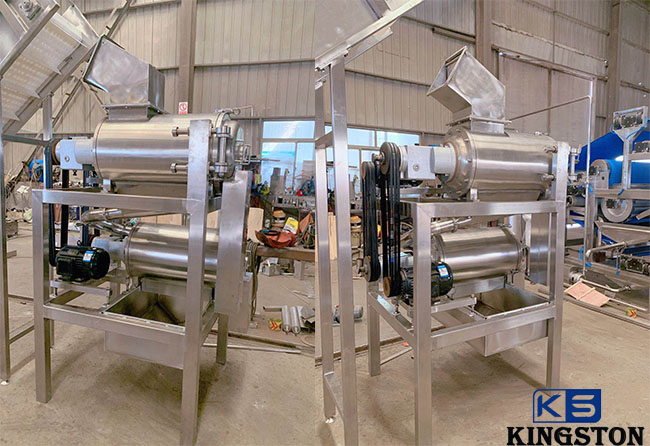

Cost effective Mango Pulping Machine, mango pulp extractor/Mango pulping process / production line.

It is made of stainless steel. Operators can install the mango puree machine in a complete processing line, or use it alone.
It can be used for not only mango puree refining, but tomato, kiwi, apple, pear, date, cherry, and other fruits. In large scale mango processing, Kingston mango pulp machine is a better alternative for peel, core and pulp automatic separating. it is mango skin and core separating machine, or mango skin and core removing machine

Notices: the mango juicer machine can also be used for tomato pulp making and processing. It is a multi-usage pulp machine for sale with ex-factory price.

Working Principle of Kingston Commercial Mango Puree Machine/tamarind pulp extraction

◆ Electric motor runs through belt, making the rotor rotating at high speed.
◆ Mango are delivered into the processing machine via elevator.
◆ Vans inside the mango pulp machine push forward and crush the mango meat into pump, as centrifugal force.
◆ Mango pump go through sieve holes and are discharged from the outlet.
◆ Mango peel and core will come out from the other discharging port. The core is removed first, and then removing peel to get final mango pulp. See more detailed information on mango peeler machine here.
The mango juicer machine can completely separate puree pure, clean and heath. mango destoning and depuling, separating the core and outer peel, get pulp

—Notes when using Kingston mango puree extract machine/ pulp machine for mangoes
1. Do install your mango pulp machine on flat ground.
2. Fasten the ground bolts and check if the bolts loosen.
3. Do confirm the rotate direction correctly when connecting power.
4. Kingston Food Machinery recommends that all brand-new mango pulp making machine should keep trial running for at least 5 minutes to confirm if everything is okay. If yes, then begin pulp processing production.
5. Feeding mango or other fruits gradually, do not force them when feeding.
6. Do remember regulate angel and sieve gap well to promise a steady operation of the mango puree machine.
7. Open the cover after the rotor stopping running.
8. When each batch production over, clean the sieve, open the front cover, take off the bolt, take apart the rotor and sieve, cleaning by water and brush is ok.
9. You need to check if over heating occasionally, to promise the whole mango pump production safe.

10. Check the belt if too fasten or too loose,can turn around by hand, always 90o is best,regulate the bolt to adjust.
11. Bearing normal temperature below 75℃,lubrucating occasionally,prolong the life of bearing.
12. Check the rotating belt is old or broken, change new one on time.

Video page: https://www.youtube.com/shorts/ifLrXh7X7S0

Brief Introduction on Kingston Plantain Chips Production Line

Plantain chips processing line designed by our company can offer a series of professional equipment and manufacturing technique to retain the nutrients of the banana chips for a long time, preventing the loss or damage of the nutrients of the banana chips to a greater extent, and improving the storage performance of the banana chips.

In the face of the abundant banana resources, deep processing and comprehensive utilization are very necessary. Therefore, plantain chips production line follows the development of the times because it can achieve “leapfrog” value-added, reduce post-harvest loss of bananas, increase farmers’ income, and increase the competitiveness of the banana industry. At the same time, Kingston Machinery can provide banana chips production line with various capacities so as to meet the different needs of consumers, for example, 100/150/200/300 kilogram per hour.

Working Process of Plantain Chips Production Line

A complete commercial banana chips processing plant mainly includes the following machines: banana chips slicer machine, elevator, fruit washing machine, dewatering machine, frying machine, de-oiling machine, seasoning machine and automatic packaging machine etc.
The production process of banana chips mainly includes the following steps:
◆ Raw material selection: The plantain used to make banana chips should be fully mature, free from pests and rot.

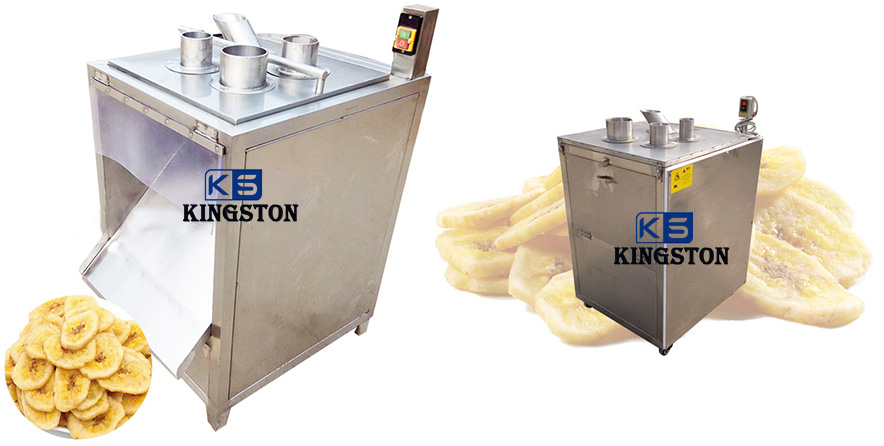

◆ Peeling and slicing: peel the bananas and cut them into 5mm-10mm thick slices. Here, we recommend the professional commercial banana slicer to cut bananas on a large scale. Besides, this banana chips slicer is flexible for operators to adjust the thickness of slicing.

◆ Seasoning: According to the ratio of 10 parts banana, 1 part milk powder and 5 parts water, banana chips seasoning machine can help to mix the milk powder with water, pour it into the banana slices, and stir thoroughly so that all the banana slices can stick to the milk powder.
◆ Frying: After baking the banana slices, put them in 130～150℃ vegetarian oil and fry them until brown, and they will be crispy and fragrant “banana chips” when they are out of the pan. Kingston industrial food frying machine adopts oil-water mixing technology, so the sediment can be cleaned easily.

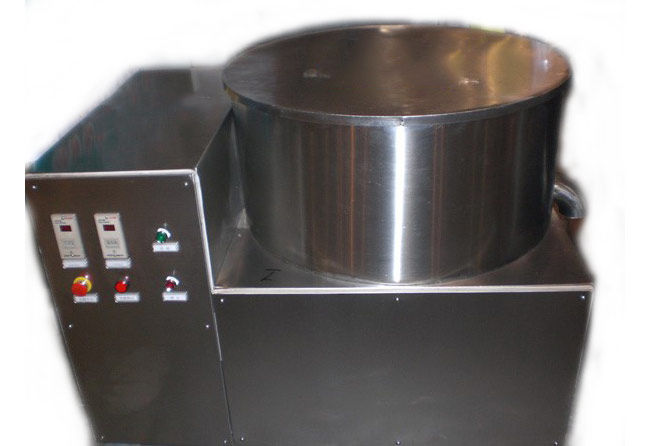

◆ De-oiling: Plantain Chips de-oiling machine can reduce the oil content and make them tastier.

◆ Graded packaging: Here, we provide the automatic chips packing machine to pack plantain/banana chips in bags for graded packaging according to color and size. Moreover, it automatically completes all the process from feeding, counting, filling and bag making, date printing to finished products output.

Advantages of Banana Chips Production Line

Made of 304 stainless steel, our banana chips production line is equipped with advanced and efficient heating system and has obvious advantages such as low investment, low energy consumption, high working efficiency, multiple function and high profits, etc.

Kingston Machinery can supply the best solutions for processing potato chips, potato cracks processing, banana chips or plantain chips production line, Plantain cutting machine, welcome inquiry

Video clip: https://www.youtube.com/shorts/RIKCPwDQ_5k

Fruit peeling machine is the efficient method of removing the peel from a large variety of fruits, such as apple, lemon, orange, kiwi, pineapple, mango, potato, pumpkin, papaya, breadfruit, etc.
Kingston multifunctional industrial fruit peeler can remove the peel with fast speed and high efficiency so as to facilitate the subsequent processing of fruits, which helps to save raw material and energy in significant. Due to adopting high grade stainless steel, our fruit and vegetable peeling machine is conform to the hygiene standards.
Meanwhile, it has the obvious advantages including high productivity, strong durability, easy operation and convenient maintenance. In virtue of these features, this fruit peeling machine has been widely used for fruit processing field, especially in cannery processing industry.

Applicable: apple peeling machine, lemon peeling, pumpkin peeling, pineapple peeling machine, papaya peeling machine, breadfruit peeling, mango peeling, grapefruit peeling

Operating Process of Fruit Peeling Machine

During the operation, users need to click on the touch screen, set the parameters and put the fruit into the fruit holder, and then the fruit peeling machine will automatically complete the separation of the holding, delivering, peeling and discharging of fruits. For now, this automatic fruit peeler has become the key equipment for the industrial production of fruit tea, fruit peel sugar, fruit beverages and so on.
You may be interested in fruit deseeding machine, fruit core removing machine

Pineapple Peeler, automatic pineapple peeling process

Applications of Industrial Fruit Peeler

This fruit peeling machine is appropriate for fruit and vegetable processing plants, frozen food factory, snack food industry and the other fields where need to remove the peel of fresh fruit and vegetables for subsequent process.
The automatic fruit peeling machine has very high adaptability, high peeling efficiency and strong reliability, and it is able to adjust the thickness of the peeling. That is to say, it can track the shape of the fruit and stick to the surface so as to be applied to dozens of fruits and vegetables, including pineapple, papaya, coconut, cantaloupe, watermelon, taro, grapefruit, orange, mandarin, lemon, kiwi, apple, pear, mango and so forth. The peeled fruits can be further processed by Industrial spiral juice extractor machine or fruit pulp extractor

Kingston Food Machinery Tips:

When choosing a fruit peeling machine, customers should consider the exhaustion rate of the peel and the loss rate of the pulp. Besides, it is also necessary to consider whether the machine can automatically adapt to the size of the fruit and whether it is easy to operate and maintain, etc.

Mango peeling machine, mango core removing machine

Technical Parameters on Kingston Industrial Fruit Peeler

Model: 6GXD-13
Capacity: 1000pcs/hr
Diameter range: 40-100mm
Peeling thick: 1-6mm
Height range: 40-120mm
Power: 0.6kW
Voltage: 380V/220V-50Hz
Weight: 380Kg
Dimensions: 1700×900×1700mm

Kiwi Peeling Machine, apple peeling machine, pear peeling and core removing, papaya peeling machine, pumpkin peeling machine, Mango peeling-coring machine

Lemon Peeler Machine, peach peeling and kernel removing, peach kernel separator, breadfruit peeling machine, grapefruit peeler, orange peeler/Pineapple Peeling and Coring machine

peeler to peel butter squash and breadfruit, butter squash peeling machine/Automatic mango peller/apple peeler and cutter

Video on youtube: https://www.youtube.com/shorts/9T4VOkDcmtk
